Model CMD6-MB and CMD6-MD
The CMD6-M is the most advanced marine CO alarm on the market, featuring a state-of-the-art sensor that is unaffected by common cleaning solvents.
The ultra low current draw of the new sensor allows us to offer the only marine battery powered CO alarm on the Market. Experience Fireboy-Xintex quality and reliability on board:
- Microprocessor controlled
- Conformal coated circuit board for added protection
- Time-weighted average CO measurement process
constantly monitors all CO levels - Highly resistant to most chemicals, solvents & cleaners
- Internal batteries or 12/24V DC models available
- CMD6-M Marine and CMD6-R RV Series CO Alarms
conform to UL STD 2034, Edition 4
CMD6-M
CMD6-M-B
Carbon Monoxide Alarm With New Sensor Technology:
- Electrochemical sensor – immediate and stablesensing reduces false alarms
- Ultra-low current draw – 4 mA
- Long sensor life – Approx. 7 year end-of-life (EOL)
– Compact design for inconspicuous protection
Modern design blends in with interior decor
– Battery operated version requires no power wiring
Reduced labor and material costs to install
Maintenance-free lithium-metal batteries
– Internal relay module available for generator shutdown or external signal
– Interconnect multiple CMD6 CO alarms
All connected CMD6-MxR Alarms sound together
– Battery backup on 12/24V DC unit
– RCM5 relay control module also available for use with CMD6
Activating the CMD6-M
Download all

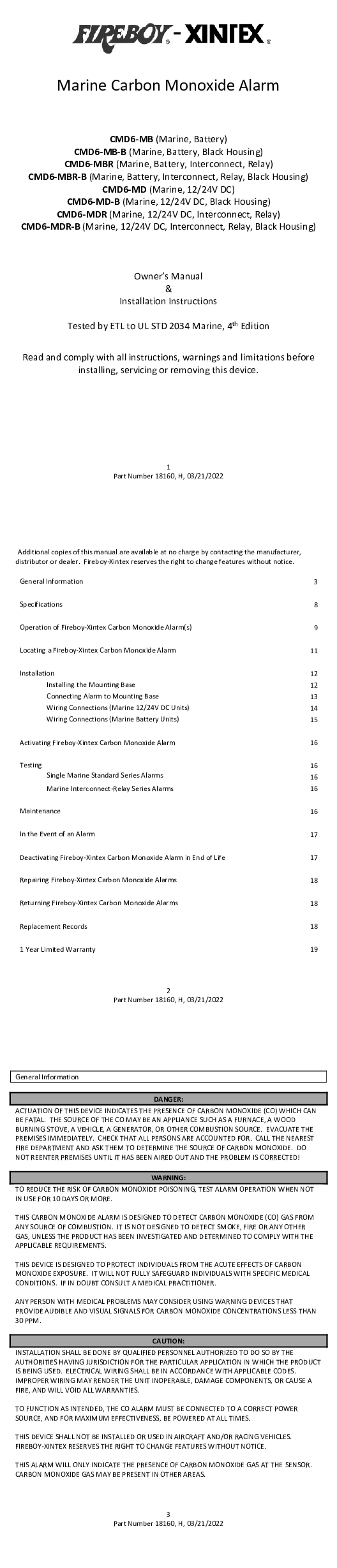

Carbon Monoxide Detectors: Marine (CMD6)
pdf
Upgrading from CMD-2M, CMD-3M and CMD-4M CO Detectors to NEW CMD5-MD 12/24 vdc CO Alarms
Size: 1.20 MB
Hits: 1377
CMD6-M Specifications
|
Model: |
CMD6-MB |
CMD6-MD |
|
End-Of-Life (EOL) |
Approx. 7 years |
Approx. 7 years |
|
POWER USAGE @ 12V DC |
None |
4 mA |
|
ALARM POINT |
10% COHb |
10% COHb |
|
ALARM HORN |
85 dBA |
85 dBA |
|
CMD6 DIMENSIONS (L X W X H) |
3.5 in x 3.5 in x 1.21 in |
3.5 in x 3.5 in x 1.21 in |
|
Warranty: |
One (1) year limited warranty material and workmanship |
One (1) year limited warranty material and workmanship |

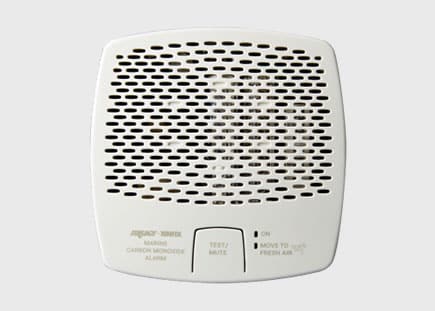

CMD6 (White)
|
Model Number |
Description |
Price |
|
|
CMD6-MB |
CO Alarm, Permanent Lithium-metal Battery, 7 year life, White, Retail |
$205.00 US |
|
|
CMD6-MBR |
CO Alarm, Permanent Lithium-metal Battery, 7 year life, Interconnect & Internal Relay, White, Retail |
$230.00 US |
|
|
CMD6-MD |
CO Alarm, 12/24V DC, 7 year life, Permanent Lithium-metal B/U Battery, White, Retail |
$205.00 US |
|
|
CMD6-MDR |
CO Alarm, 12/24V DC, 7 year life, Permanent Lithium-metal B/U Battery, Interconnect & Internal Relay, White, Retail |
$230.00 US |

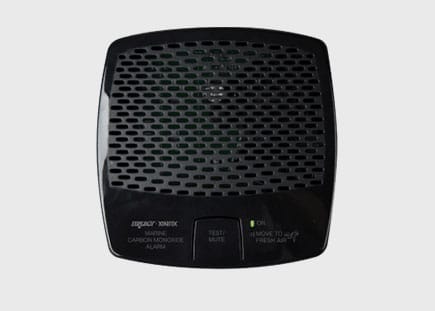

CMD6 (Black)
|
Model Number |
Description |
Price |
|
|
CMD6-MB-B |
CO Alarm, Permanent Lithium-metal Battery, 7 year life, Black, Retail |
$205.00 US |
|
|
CMD6-MBR-B |
CO Alarm, 7 year life, Permanent Lithium-metal Battery, Interconnect & Internal Relay, Black, Retail |
$230.00 US |
|
|
CMD6-MD-B |
CO Alarm, 12/24V DC, 7 year life, Permanent Lithium-metal B/U Battery, Black, Retail |
$205.00 US |
|
|
CMD6-MDR-B |
CO Alarm, 12/24V DC, 7 year life, Permanent Lithium-metal B/U Battery, Interconnect & Internal Relay, Black, Retail |
$230.00 US |
Conversion Plate
Optional conversion plate for mounting CMD6-M Carbon Monoxide Alarms in places where larger CMD2-M, CMD3-M, CMD4-M or CMD5-M units were previously installed. This cover plate covers up unsightly wear or openings from previous installations.
Four mounting screws are included.
|
Model Number |
Description |
Price |
|
|
100102-W |
CMD6 Conversion Plate, White |
$14.00 US | |
|
100102-B |
CMD6 Conversion Plate, Black |
$14.00 US |
Specifications subject to change without notice.
