Fire Extinguishing Systems Model / Size chart
CG and MA Series FK-5-1-12
WARNING: Craft with equipment that draws intake air from within a protected space require installation of an Engine Shutdown System.
Download all
pdf

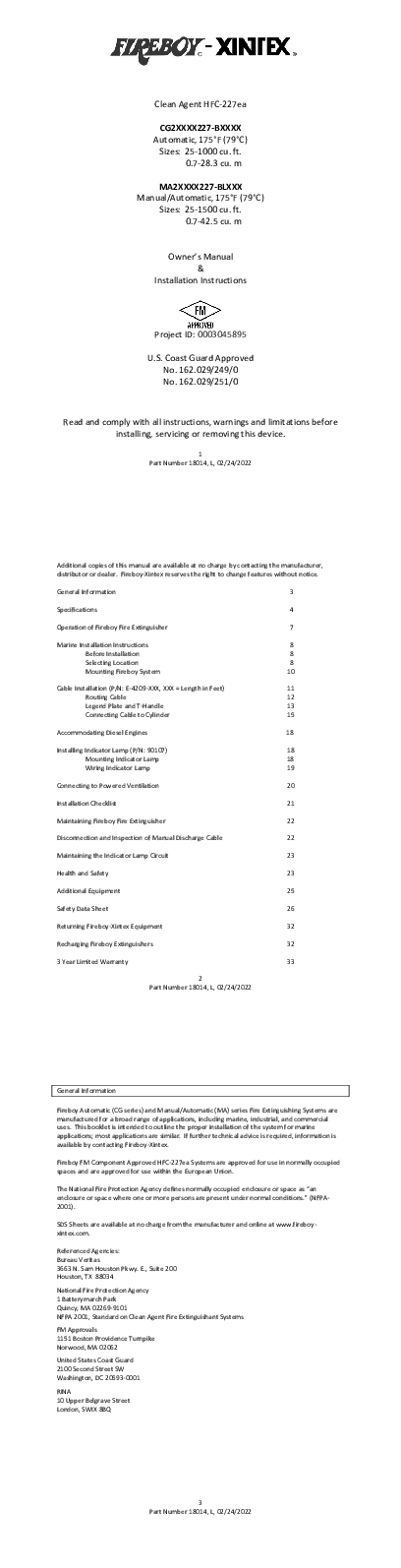

18046F - MA, FK-5-1-12, Electric, B Fires - REV G
Size: 670.84 KB
Hits: 36
Date modified: 09-13-2024
CG Size Chart |
Volume Protected | Diameter | Total Height | Agent Weight | Shipping Weight | System Pressure (@70° F) | |||||||
| Model Number | ft³ | m³ | in | mm | in | mm | lbs | kgs | lbs | kgs | psi | ||
| CG0025NVC-F | 25 | 0.7 | 3.3 | 85 | 10.9 | 278 | 1.3 | 0.6 | 5 | 2.4 | 360 | ||
| CG0050NVC-F | 50 | 1.4 | 3.3 | 85 | 14.7 | 373 | 2.7 | 1.2 | 8 | 3.8 | 360 | ||
| CG0075NVC-F | 75 | 2.1 | 4.3 | 110 | 17 | 432 | 4 | 1.8 | 14 | 6.3 | 360 | ||
| CG0100NVC-F | 100 | 2.8 | 4.3 | 110 | 17 | 432 | 5.4 | 2.4 | 15 | 6.9 | 360 | ||
| CG0125NVC-F | 125 | 3.5 | 5.1 | 130 | 18.7 | 474 | 6.7 | 3 | 19 | 8.5 | 360 | ||
| CG0150NVC-F | 150 | 4.3 | 5.1 | 130 | 18.7 | 474 | 8.1 | 3.7 | 24 | 10.8 | 360 | ||
| CG0175NVC-F | 175 | 4.9 | 6.3 | 160 | 18.7 | 476 | 9.4 | 4.3 | 26 | 11.9 | 360 | ||
| CG0200NVC-F | 200 | 5.7 | 6.3 | 160 | 18.7 | 476 | 10.7 | 4.9 | 28 | 12.5 | 360 | ||
| CG0225NVC-F | 225 | 6.4 | 6.3 | 160 | 18.7 | 476 | 12.1 | 5.5 | 32 | 14.3 | 360 | ||
| CG0250NVC-F | 250 | 7 | 6.3 | 160 | 18.7 | 476 | 13.4 | 6.1 | 33 | 14.9 | 360 | ||
| CG0275NVC-F | 275 | 7.8 | 7.1 | 180 | 18.4 | 468 | 14.8 | 6.7 | 36 | 16.5 | 360 | ||
| CG0300NVC-F | 300 | 8.5 | 7.1 | 180 | 18.4 | 468 | 16.1 | 7.3 | 38 | 17.1 | 360 | ||
| CG0325NVC-F | 325 | 9.2 | 7.1 | 180 | 20.8 | 527 | 17.5 | 7.9 | 43 | 19.4 | 360 | ||
| CG0350NVC-F | 350 | 10 | 7.1 | 180 | 20.8 | 527 | 18.8 | 8.5 | 44 | 19.9 | 360 | ||
| CG0375NVC-F | 375 | 10.6 | 7.1 | 180 | 20.8 | 527 | 20.1 | 9.1 | 45 | 20.4 | 360 | ||
| CG0400NVC-F | 400 | 11.3 | 7.1 | 180 | 28.8 | 731 | 21.5 | 9.8 | 53 | 23.9 | 360 | ||
| CG0450NVC-F | 450 | 12.7 | 7.1 | 180 | 28.8 | 731 | 24.2 | 11 | 55 | 24.1 | 360 | ||
| CG0500NVC-F | 500 | 14.1 | 7.1 | 180 | 28.8 | 731 | 26.9 | 12.2 | 60 | 27.4 | 360 | ||
| CG0550NVC-F | 550 | 15.6 | 7.1 | 180 | 28.8 | 731 | 29.6 | 13.4 | 63 | 28.5 | 360 | ||
| CG0600NVC-F | 600 | 17 | 7.1 | 180 | 35 | 888 | 32.2 | 14.6 | 71 | 32.4 | 360 | ||
| CG0650NVC-F | 650 | 18.4 | 7.1 | 180 | 35 | 888 | 34.9 | 15.8 | 75 | 34 | 360 | ||
| CG0700NVC-F | 700 | 19.8 | 7.1 | 180 | 35 | 888 | 37.6 | 17.1 | 78 | 35.2 | 360 | ||
| CG0750NVC-F | 750 | 21.2 | 7.1 | 180 | 35 | 888 | 40.3 | 18.3 | 84 | 37.9 | 360 | ||
| CG0800NVC-F | 800 | 22.6 | 10 | 254 | 23 | 585 | 43 | 19.5 | 89 | 40.4 | 360 | ||
| CG0850NVC-F | 850 | 24 | 10 | 254 | 23 | 585 | 45.7 | 20.7 | 93 | 42 | 360 | ||
| CG0900NVC-F | 900 | 25.5 | 10 | 254 | 29.2 | 742 | 48.4 | 22 | 95 | 43.2 | 360 | ||
| CG0950NVC-F | 950 | 26.9 | 10 | 254 | 29.2 | 742 | 51 | 23.1 | 99 | 44.8 | 360 | ||
| CG1000NVC-F | 1000 | 28.3 | 10 | 254 | 29.2 | 742 | 53.7 | 24.4 | 101 | 45.9 | 360 | ||
| Low Profile Models | |||||||||||||
| CG0600NVC-4F | 600 | 17 | 10 | 254 | 23 | 585 | 32.2 | 14.6 | 71 | 32.1 | 360 | ||
| CG0650NVC-4F | 650 | 18.4 | 10 | 254 | 23 | 585 | 34.9 | 15.8 | 74 | 33.6 | 360 | ||
| CG0700NVC-4F | 700 | 19.8 | 10 | 254 | 23 | 585 | 37.6 | 17.1 | 77 | 34.7 | 360 | ||
| CG0750NVC-4F | 750 | 21.2 | 10 | 254 | 23 | 585 | 40.3 | 18.3 | 82 | 37.3 | 360 | ||
MA Size Chart |
Volume Protected | Diameter | Total Height | Agent Weight | Shipping Weight | System Pressure (@70° F) | |||||||
| Model Number | ft³ | m³ | in | mm | in | mm | lbs | kgs | lbs | kgs | psi | ||
| MA0025NVC-F | 25 | 0.7 | 3.3 | 85 | 12.4 | 316 | 1.3 | 0.6 | 5 | 2.4 | 360 | ||
| MA0050NVC-F | 50 | 1.4 | 3.3 | 85 | 16.2 | 411 | 2.7 | 1.2 | 9 | 3.9 | 360 | ||
| MA0075NVC-F | 75 | 2.1 | 4.3 | 110 | 18.5 | 470 | 4 | 1.8 | 14 | 6.3 | 360 | ||
| MA0100NVC-F | 100 | 2.8 | 4.3 | 110 | 18.5 | 470 | 5.4 | 2.4 | 15 | 6.9 | 360 | ||
| MA0125NVC-F | 125 | 3.5 | 5.1 | 130 | 20.2 | 512 | 6.7 | 3 | 19 | 8.5 | 360 | ||
| MA0150NVC-F | 150 | 4.3 | 5.1 | 130 | 20.2 | 512 | 8.1 | 3.7 | 24 | 10.9 | 360 | ||
| MA0175NVC-F | 175 | 4.9 | 6.3 | 160 | 20.2 | 514 | 9.4 | 4.3 | 26 | 12 | 360 | ||
| MA0200NVC-F | 200 | 5.7 | 6.3 | 160 | 20.2 | 514 | 10.7 | 4.9 | 28 | 12.6 | 360 | ||
| MA0225NVC-F | 225 | 6.4 | 6.3 | 160 | 20.2 | 514 | 12.1 | 5.5 | 32 | 14.4 | 360 | ||
| MA0250NVC-F | 250 | 7 | 6.3 | 160 | 20.2 | 514 | 13.4 | 6.1 | 33 | 14.9 | 360 | ||
| MA0275NVC-F | 275 | 7.8 | 7.1 | 180 | 19.9 | 506 | 14.8 | 6.7 | 37 | 16.6 | 360 | ||
| MA0300NVC-F | 300 | 8.5 | 7.1 | 180 | 19.9 | 506 | 16.1 | 7.3 | 38 | 17.1 | 360 | ||
| MA0325NVC-F | 325 | 9.2 | 7.1 | 180 | 22.3 | 565 | 17.5 | 7.9 | 43 | 19.6 | 360 | ||
| MA0350NVC-F | 350 | 10 | 7.1 | 180 | 22.3 | 565 | 18.8 | 8.5 | 44 | 20.1 | 360 | ||
| MA0375NVC-F | 375 | 10.6 | 7.1 | 180 | 22.3 | 565 | 20.1 | 9.1 | 46 | 20.7 | 360 | ||
| MA0400NVC-F | 400 | 11.3 | 7.1 | 180 | 30.3 | 769 | 21.5 | 9.8 | 53 | 24.2 | 360 | ||
| MA0450NVC-F | 450 | 12.7 | 7.1 | 180 | 30.3 | 769 | 24.2 | 11 | 56 | 25.4 | 360 | ||
| MA0500NVC-F | 500 | 14.1 | 7.1 | 180 | 30.3 | 769 | 26.9 | 12.2 | 61 | 27.6 | 360 | ||
| MA0550NVC-F | 550 | 15.6 | 7.1 | 180 | 30.3 | 769 | 29.6 | 13.4 | 63 | 28.8 | 360 | ||
| MA0600NVC-F | 600 | 17 | 7.1 | 180 | 36.5 | 926 | 32.2 | 14.6 | 72 | 32.7 | 360 | ||
| MA0650NVC-F | 650 | 18.4 | 7.1 | 180 | 36.5 | 926 | 34.9 | 15.8 | 76 | 34.2 | 360 | ||
| MA0700NVC-F | 700 | 19.8 | 7.1 | 180 | 36.5 | 926 | 37.6 | 17.1 | 78 | 35.4 | 360 | ||
| MA0750NVC-F | 750 | 21.2 | 7.1 | 180 | 36.5 | 926 | 40.3 | 18.3 | 84 | 38.1 | 360 | ||
| MA0800NVC-F | 800 | 22.6 | 10 | 254 | 24.5 | 623 | 43 | 19.5 | 90 | 40.7 | 360 | ||
| MA0850NVC-F | 850 | 24 | 10 | 254 | 24.5 | 623 | 45.7 | 20.7 | 93 | 42.3 | 360 | ||
| MA0900NVC-F | 900 | 25.5 | 10 | 254 | 30.7 | 781 | 48.4 | 22 | 103 | 46.8 | 360 | ||
| MA0950NVC-F | 950 | 26.9 | 10 | 254 | 30.7 | 781 | 51 | 23.1 | 107 | 48.4 | 360 | ||
| MA1000NVC-F | 1000 | 28.3 | 10 | 254 | 30.7 | 781 | 53.7 | 24.4 | 109 | 49.5 | 360 | ||
| MA1050NVC-F | 1050 | 29.7 | 10 | 254 | 30.7 | 781 | 56.4 | 25.6 | 113 | 51.1 | 360 | ||
| MA1100NVC-F | 1100 | 31.1 | 10 | 254 | 30.7 | 781 | 59.1 | 26.8 | 116 | 52.7 | 360 | ||
| MA1150NVC-F | 1150 | 33 | 10 | 254 | 30.7 | 781 | 61.8 | 28 | 125 | 56.9 | 360 | ||
| MA1200NVC-F | 1200 | 34 | 10 | 254 | 30.7 | 781 | 64.5 | 29.3 | 129 | 58.6 | 360 | ||
| MA1250NVC-F | 1250 | 35.4 | 10 | 254 | 35.5 | 901 | 67.2 | 30.5 | 130 | 59 | 360 | ||
| MA1300NVC-F | 1300 | 36.8 | 10 | 254 | 35.5 | 901 | 69.8 | 31.7 | 134 | 60.6 | 360 | ||
| MA1350NVC-F | 1350 | 38.2 | 10 | 254 | 35.5 | 901 | 72.5 | 32.9 | 137 | 62.1 | 360 | ||
| MA1400NVC-F | 1400 | 39.6 | 10 | 254 | 35.5 | 901 | 75.2 | 34.1 | 140 | 63.3 | 360 | ||
| MA1450NVC-F | 1450 | 41 | 10 | 254 | 35.5 | 901 | 77.9 | 35.3 | 143 | 64.9 | 360 | ||
| MA1500NVC-F | 1500 | 42.5 | 10 | 254 | 35.5 | 901 | 80.6 | 36.6 | 146 | 66.1 | 360 | ||
| MA1550NVC-F | 1550 | 43.9 | 10 | 254 | 44.7 | 1136 | 83.3 | 37.8 | 153 | 69.3 | 360 | ||
| MA1600NVC-F | 1600 | 45.3 | 10 | 254 | 44.7 | 1136 | 86 | 39 | 156 | 70.8 | 360 | ||
| MA1650NVC-F | 1650 | 46.7 | 10 | 254 | 44.7 | 1136 | 88.7 | 40.2 | 159 | 72.2 | 360 | ||
| MA1700NVC-F | 1700 | 48.1 | 10 | 254 | 44.7 | 1136 | 91.3 | 41.4 | 162 | 73.7 | 360 | ||
| MA1750NVC-F | 1750 | 49.6 | 10 | 254 | 44.7 | 1136 | 94 | 42.6 | 166 | 75.1 | 360 | ||
| MA1800NVC-F | 1800 | 51 | 10 | 254 | 44.7 | 1136 | 96.7 | 43.9 | 169 | 76.6 | 360 | ||
| Low Profile Models | |||||||||||||
| MA0600NVC-4F | 600 | 17 | 10 | 254 | 24.5 | 623 | 32.2 | 14.6 | 75 | 33.8 | 360 | ||
| MA0650NVC-4F | 650 | 18.4 | 10 | 254 | 24.5 | 623 | 34.9 | 15.8 | 77 | 35 | 360 | ||
| MA0700NVC-4F | 700 | 19.8 | 10 | 254 | 24.5 | 623 | 37.6 | 17.1 | 83 | 37.5 | 360 | ||
| MA0750NVC-4F | 750 | 21.2 | 10 | 254 | 24.5 | 623 | 40.3 | 18.3 | 88 | 40 | 360 | ||
